ID:
2159
Maker's Name:
Cambridge Instrument Co. Ltd, England
Where made:
England
1928
Dimensions:
6.3 × 7.4 × 4.3 cm

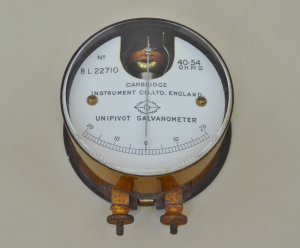

The unipivot galvanometer was invented by Robert W. Paul in 1903. It is a classic of careful instrument design and continued in production for over 50 years.
As in the more common form of moving coil galvanometer (D'Arsonval) a coil is pivotted between the poles of a permanent magnet and experiences a torque when a current flows.

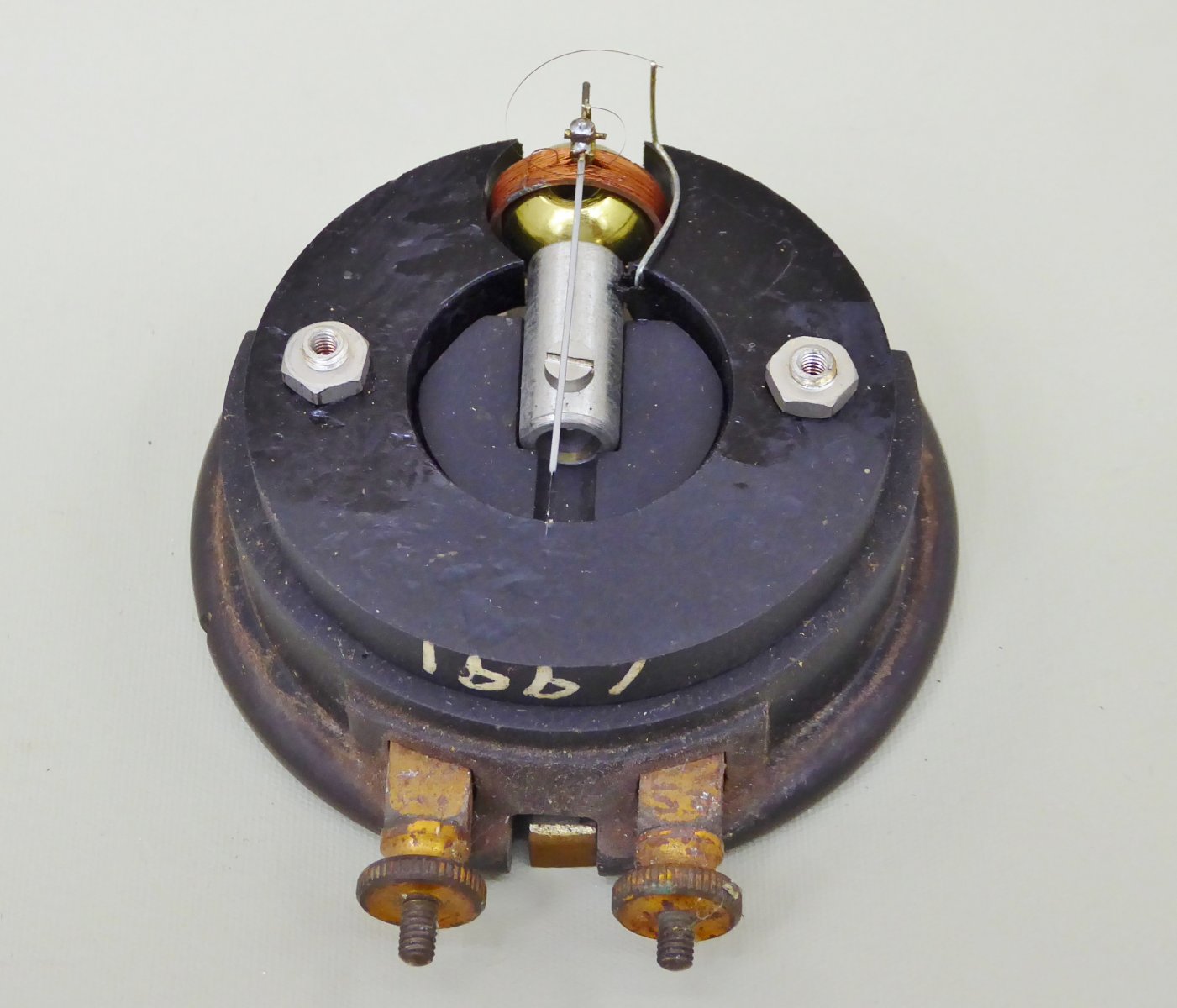

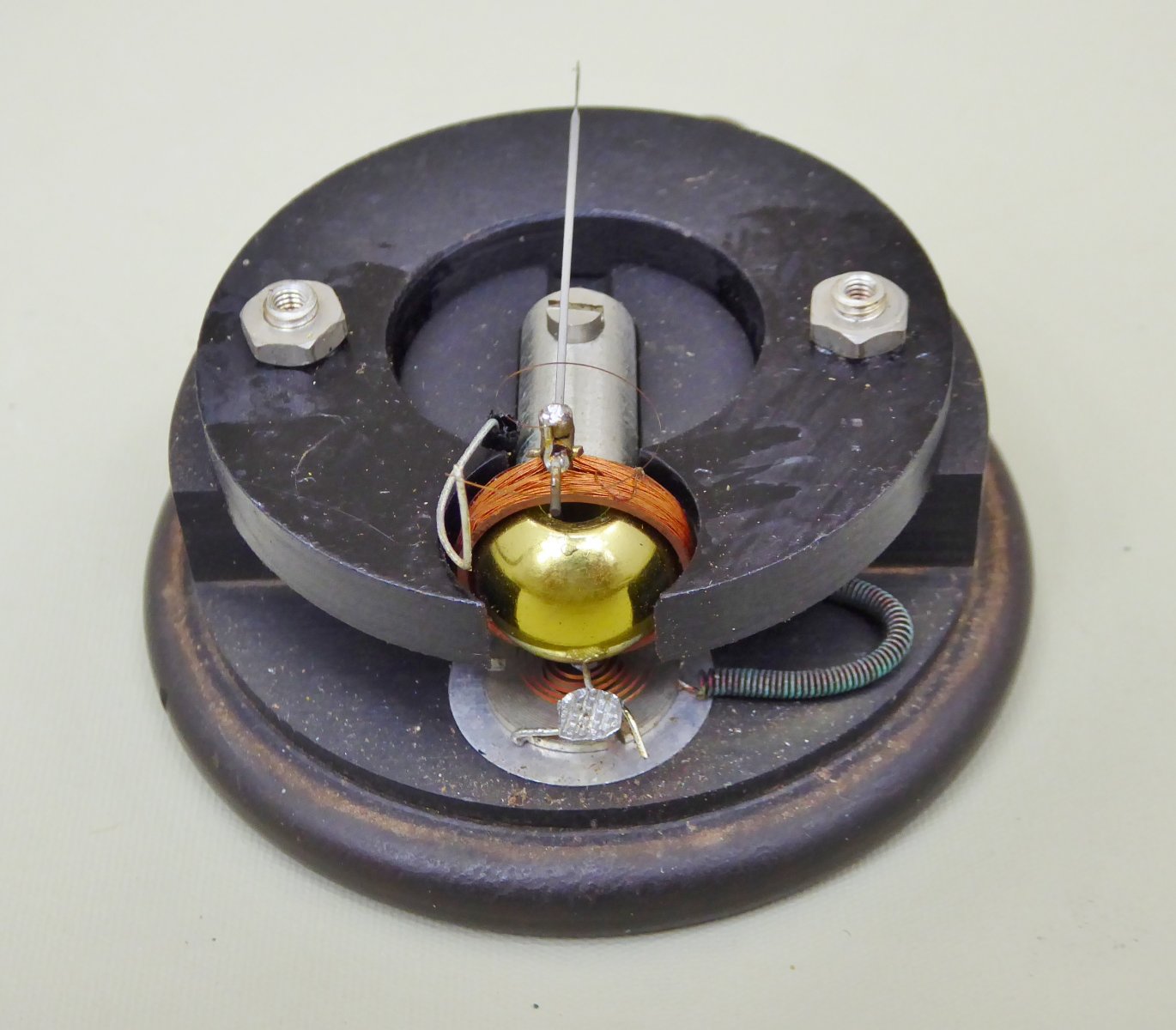

However, the coil here is circular and cleverly pivoted on a single spike (the unipivot) at its centre of gravity, with the result that the device is not disturbed by accelerations and could be used to make measurements in moving vehicles.
The design was further refined by an automatic lock that protected the delicate mechanism from damage when not in use.
The Model B was the smallest version made.
Book reference:
MJG Cattermole and AF Wolfe, 'Horace Darwin's Shop', Adam Hilger, Bristol & Boston (1987) pp 211-213
